Inomak CA170 Upright Single-Door Fridge
Key Features:

No of Doors: Single
Fridge / Freezer: Fridge
Finish: Stainless Steel
Power: 13 amp Single phase
Ext.Depth (mm): 865
Ext.Height (mm): 2115
Ext.Width (mm): 720
Warranty (Years): 3
Temperature °C: +1/+10
Capacity (litres/cu.ft): 670 / 23

Description:

Inomak CA170 Single door upright refrigerator

Heavy duty refrigerator
High grade stainless steel interior & exterior
Accommodates 1/1 and 2/1 gastronorm trays
4 shelves on slides per door
Easy to clean radius internal corners with removable sheld supports and racking
Self closing, lockable door with replaceanle gaskets and inset handles
Fitted as standard with heavy duty 125mm castors for easy positioning and mobility
Reversable door
60mm CFC free polyurethane insulation
Frost free forced air cooling
Capacity: 670 litres / 23 cu.ft
Temperature range: +1 to +10'c
Weight: 114kg
Dimensions: 2115(h)x720(w)x865(d)
Electronic controller incorporates an audible & visual HI/LOW alarm
Auto/Manual defrost indicator
Standby switch
Electrical evaporation of condensate
3 years Parts and 3 year Labour Warranty
Free UK mainland delivery

Key Features:

No of Doors: Double
Fridge / Freezer: Fridge
Finish: Stainless Steel
Ext.Depth (mm): 865
Ext.Height (mm): 2100
Ext.Width (mm): 1440
Warranty (Years): 3
Temperature °C: +1/+10
Capacity (litres/cu.ft): 1358

Description:

Inomak CE2140 Double door upright refrigerator

Heavy duty refrigerator
High grade stainless steel interior & exterior
Self closing lockable doors
Frost free forced air cooling
Capacity: 1358 litres
Temperature range: +1 to +10'c
Weight: 207kg
Dimensions: 2100(h)x1440(w)x865(d)
Electronic controller incorporates an audible & visual HI/LOW alarm
Fitted with heavy duty castors as standard
Auto/Manual defrost indicator
Standby switch
Electrical evaporation of condensate
3 years Parts and 3 year Labour Warranty
Free UK mainland delivery

Key Features:

No of Doors: Single
Fridge / Freezer: Fridge
Finish: Stainless Steel
Power: 13 amp
Ext.Depth (mm): 865
Ext.Height (mm): 2100
Ext.Width (mm): 720
Warranty (Years): 3
Temperature °C: -2 to +8'c
Capacity (litres/cu.ft): 618

Description:

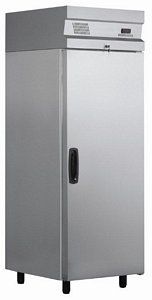

Inomak CZ170 Single door upright refrigerator

Heavy duty refrigerator
High grade stainless steel interior & exterior
Accommodates 1/1 and 2/1 gastronorm trays
Self closing lockable doors
Frost free forced air cooling
Capacity: 618 litres
Temperature range: -2 to +8'c
Weight: 128kg
Dimensions: 2100(h)x720(w)x865(d)
Electronic controller incorporates an audible & visual HI/LOW alarm
Fitted with heavy duty castors as standard
Auto/Manual defrost indicator
Standby switch
Electrical evaporation of condensate
3 years Parts and 3 year Labour Warranty
Free UK mainland delivery

Key Features:

No of Doors: Double
Fridge / Freezer: Fridge
Finish: Stainless Steel
Ext.Depth (mm): 865
Ext.Height (mm): 2100
Ext.Width (mm): 1440
Warranty (Years): 3
Temperature °C: -2 to +8'c
Capacity (litres/cu.ft): 1358

Description:

Inomak CW2140 Double door upright refrigerator

Heavy duty refrigerator
High grade stainless steel interior & exterior
Self closing lockable doors
Frost free forced air cooling
Capacity: 1358 litres
Temperature range: -2 to +8'c
Weight: 207kg
Dimensions: 2100(h)x1440(w)x865(d)
Electronic controller incorporates an audible & visual HI/LOW alarm
Fitted with heavy duty castors as standard
Auto/Manual defrost indicator
Standby switch
Electrical evaporation of condensate
3 years Parts and 3 year Labour Warranty
Free UK mainland delivery

Key Features:

No of Doors: Single
Fridge / Freezer: Freezer
Finish: Stainless Steel
Power: 13 amp Single phase
Ext.Depth (mm): 865
Ext.Height (mm): 2150
Ext.Width (mm): 720
Warranty (Years): 3
Temperature °C: -18/-22
Capacity (litres/cu.ft): 670 / 23

Description:

Inomak CB170 Single door upright Freezer

Heavy duty freezer
High grade stainless steel interior & exterior
Accommodates 1/1 and 2/1 gastronorm trays
4 shelves on slides per door
Easy to clean radius internal corners with removable sheld supports and racking
Self closing, lockable door with replaceanle gaskets and inset handles
Fitted as standard with heavy duty 125mm castors for easy positioning and mobility
Reversable door
60mm CFC free polyurethane insulation
Frost free forced air cooling
Capacity: 670 litres / 23 cu.ft
Temperature range: -18 to -22'c
Weight: 115kg
Dimensions: 2150(h)x720(w)x865(d)
Electronic controller incorporates an audible & visual HI/LOW alarm
Auto/Manual defrost indicator
Standby switch
Electrical evaporation of condensate
12 volt door heater
3 years Parts and 3 year Labour Warranty
Free UK mainland delivery

Key Features:

No of Doors: Double
Fridge / Freezer: Freezer
Finish: Stainless Steel
Power: 13 amp
Ext.Depth (mm): 865
Ext.Height (mm): 2100
Ext.Width (mm): 1440
Warranty (Years): 3
Temperature °C: -18/-22
Capacity (litres/cu.ft): 1358

Description:

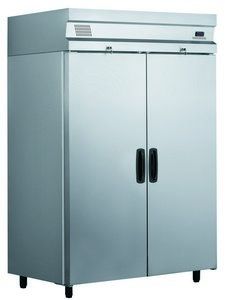

Inomak CF2140 Double door upright Freezer

Heavy duty freezer
High grade stainless steel interior & exterior
Self closing lockable doors
Frost free forced air cooling
Capacity: 1358 litres
Temperature range: -18 to -22'c
Weight: 213kg
Dimensions: 2100(h)x1440(w)x865(d)
Electronic controller incorporates an audible & visual HI/LOW alarm
Fitted with heavy duty castors as standard
Auto/Manual defrost indicator
Standby switch
Electrical evaporation of condensate
3 years Parts and 3 year Labour Warranty
Free UK mainland delivery

Key Features:

No of Doors: Single
Fridge / Freezer: Fridge
Finish: Stainless Steel
Power: 13 amp
Ext.Depth (mm): 720
Ext.Height (mm): 2100
Ext.Width (mm): 720
Warranty (Years): 3
Temperature °C: +1 to +10'c
Capacity (litres/cu.ft): 525

Description:

Inomak CA170/SL NEW SLIMLINE Single door upright refrigerator

Heavy duty refrigerator
High grade stainless steel interior & exterior
Self closing lockable doors
Frost free forced air cooling
Capacity: 525 ltr
Temperature range: +1 to +10'c
Weight: 114kg
Dimensions: 2100(h)x720(w)x720(d)
Electronic controller incorporates an audible & visual HI/LOW alarm
Fitted with heavy duty castors as standard
Auto/Manual defrost indicator
Standby switch
Electrical evaporation of condensate
3 years Parts and 3 year Labour Warranty
Free UK mainland delivery

Key Features:

No of Doors: Double
Fridge / Freezer: Fridge
Finish: Stainless Steel
Ext.Depth (mm): 720
Ext.Height (mm): 2100
Ext.Width (mm): 1440
Warranty (Years): 3
Temperature °C: +1 to +10'c
Capacity (litres/cu.ft): 1152

Description:

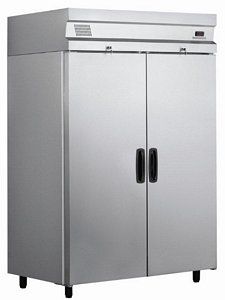

Inomak CE2140/SL NEW SLIMLINE Double door upright refrigerator

Heavy duty refrigerator
High grade stainless steel interior & exterior
Self closing lockable doors
Frost free forced air cooling
Capacity: 1152 litres
Temperature range: +1 to +10'c
Weight: 182kg
Dimensions: 2100(h)x1440(w)x720(d)
Electronic controller incorporates an audible & visual HI/LOW alarm
Fitted with heavy duty castors as standard
Auto/Manual defrost indicator
Standby switch
Electrical evaporation of condensate
3 years Parts and 3 year Labour Warranty
Free UK mainland delivery

Key Features:

No of Doors: Single
Fridge / Freezer: Freezer
Finish: Stainless Steel
Power: 13 amp
Ext.Depth (mm): 720
Ext.Height (mm): 2100
Ext.Width (mm): 720
Warranty (Years): 3
Temperature °C: -18 to -22'c
Capacity (litres/cu.ft): 525

Description:

Inomak CB170/SL NEW SLIMLINE Single door upright Freezer

Heavy duty freezer
High grade stainless steel interior & exterior
Self closing lockable doors
Frost free forced air cooling
Capacity: 525 litres
Temperature range: -18 to -22'c
Weight: 128kg
Dimensions: 2100(h)x720(w)x720(d)
Electronic controller incorporates an audible & visual HI/LOW alarm
Fitted with heavy duty castors as standard
Auto/Manual defrost indicator
Standby switch
Electrical evaporation of condensate
3 years Parts and 3 year Labour Warranty
Free UK mainland delivery

Key Features:

No of Doors: Double
Fridge / Freezer: Freezer
Finish: Stainless Steel
Power: 13 amp
Ext.Depth (mm): 720
Ext.Height (mm): 2100
Ext.Width (mm): 1440
Warranty (Years): 3
Temperature °C: -18 to -22'c
Capacity (litres/cu.ft): 1152

Description:

Inomak CF2140/SL NEW SLIMLINE Double door upright Freezer

Heavy duty freezer
High grade stainless steel interior & exterior
Self closing lockable doors
Frost free forced air cooling
Capacity: 1152 litres
Temperature range: -18 to -22'c
Weight: 188kg
Dimensions: 2100(h)x1440(w)x720(d)
Electronic controller incorporates an audible & visual HI/LOW alarm
Fitted with heavy duty castors as standard
Auto/Manual defrost indicator
Standby switch
Electrical evaporation of condensate
3 years Parts and 3 year Labour Warranty
Free UK mainland delivery

Key Features:

No of Doors: 2
Fridge / Freezer: Fridge
Power: 13 amp single phase
Ext.Depth (mm): 700
Ext.Height (mm): 870
Ext.Width (mm): 1345
Warranty (Years): 3
Temperature °C: +1/+10
Capacity (litres/cu.ft): 313/12

Description:

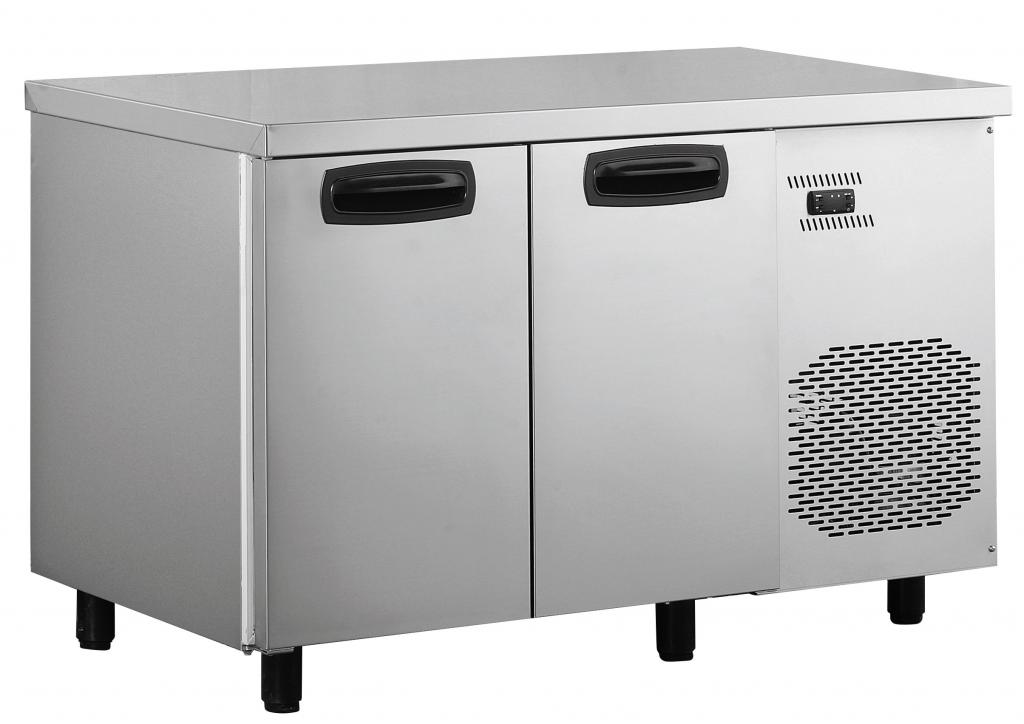

Inomak PN99 2 door counter refrigerator

High grade 304 stainless steel interior and exterior to withstand the rigors of the most demanding kitchen
Stainless steel finish to back of counter
Supplied with 1 shelf per door
Accommodates 1/1 gastronorm trays
Easy to clean radius internal corners with removable shelf supports and racking
Doors with replaceable magnetic gaskets ensures effective seal
180' opening of doors for wasy cleaning and usability
50mm CFC Free Polyurethane insulation
Fan assisted cooling
Designed for efficient and effective operation in 40'c ambient
Evaps. epoxy coated to avoid corrosion
R134a refrigerant
Auto defrost - off cycle
Auto vaporisation of condensate
Electronic controller incorporates an audible and visual HI/LOW alarm
Auto/manual defrost indicator
standby switch
Refrigeration cycle running indicator
3 years Parts and 3 year Labour Warranty
Free UK mainland delivery

Key Features:

No of Doors: 3
Fridge / Freezer: Fridge
Power: 13 amp Single phase
Ext.Depth (mm): 700
Ext.Height (mm): 870
Ext.Width (mm): 1790
Warranty (Years): 3
Temperature °C: +1/+10
Capacity (litres/cu.ft): 433/15

Description:

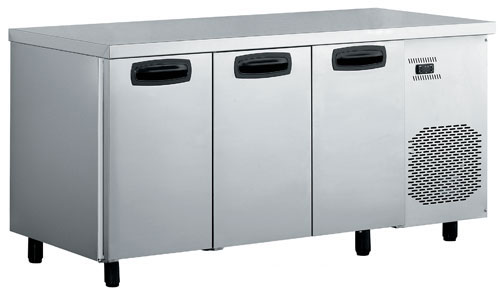

Inomak PN999 3 door counter refrigerator

High grade 304 stainless steel interior and exterior to withstand the rigors of the most demanding kitchen
Stainless steel finish to back of counter
Supplied with 1 shelf per door
Accommodates 1/1 gastronorm trays
Easy to clean radius internal corners with removable shelf supports and racking
Doors with replaceable magnetic gaskets ensures effective seal
180' opening of doors for wasy cleaning and usability
50mm CFC Free Polyurethane insulation
Fan assisted cooling
Designed for efficient and effective operation in 40'c ambient
Evaps. epoxy coated to avoid corrosion
R134a refrigerant
Auto defrost - off cycle
Auto vaporisation of condensate
Electronic controller incorporates an audible and visual HI/LOW alarm
Auto/manual defrost indicator
standby switch
Refrigeration cycle running indicator
3 years Parts and 3 year Labour Warranty
Free UK mainland delivery

Key Features:

No of Doors: 4
Fridge / Freezer: Fridge
Ext.Depth (mm): 700
Ext.Height (mm): 1870
Ext.Width (mm): 224
Warranty (Years): 3
Temperature °C: +1/+10
Capacity (litres/cu.ft): 588/20

Description:

Inomak PN9999 4 door counter refrigerator

4 doors with replaceable magnetic gaskets
Standard with one shelf per door
Accommodates 1/1 gastronorm trays
High grade AISI 304 stainless steel interior and exterior
Height adjustable legs
Capacity: 588 ltr / 20 cu ft
Temperature range +1 to +10'c
Dimensions: 870(h)x2240(w)x 700(d)
Weight: 157kg
Fan assisted cooling
Evaps. epoxy coated to avoid corrosion
50mm CFC Free Polyurethane insulation
R134a refrigerant
Auto defrost - off cycle
Auto vaporisation of condensate
Electronic controller incorporates an audible and visual HI/LOW alarm
Auto/Manual defrost indicator
Standby switch
3 years Parts and 3 year Labour Warranty
Free UK mainland delivery

Key Features:

No of Doors: 1 Door / 1 Drawer
Fridge / Freezer: Fridge
Power: 13 amp
Ext.Depth (mm): 700
Ext.Height (mm): 870
Ext.Width (mm): 1345
Warranty (Years): 3
Temperature °C: +1 to +10'c
Capacity (litres/cu.ft): 345/12

Description:

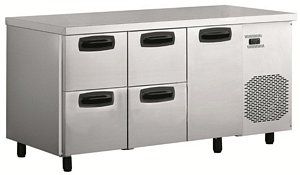

Inomak PN29 counter refrigerator

1 door with replaceable magnetic gaskets
2 Drawers with replaceable magnetic gaskets
Standard with one shelf per door
Accommodates 1/1 gastronorm trays
High grade AISI 304 stainless steel interior and exterior
Height adjustable legs
Capacity: 345 ltr / 12 cu ft
Temperature range +1 to +10'c
Dimensions: 870(h)x1345(w)x 700(d)
Weight: 125kg
Fan assisted cooling
Evaps. epoxy coated to avoid corrosion
50mm CFC Free Polyurethane insulation
R134a refrigerant
Auto defrost - off cycle
Auto vaporisation of condensate
Electronic controller incorporates an audible and visual HI/LOW alarm
Auto/Manual defrost indicator
Standby switch
3 years Parts and 3 year Labour Warranty
Free UK mainland delivery

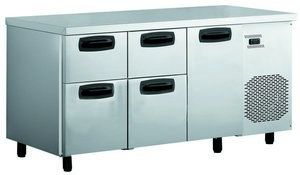

(model shown is the PN229)

Key Features:

No of Doors: 1 door / 4 drawers
Fridge / Freezer: Fridge
Power: 13 amp
Ext.Depth (mm): 700
Ext.Height (mm): 870
Ext.Width (mm): 1790
Warranty (Years): 3
Temperature °C: +1 to +10'c
Capacity (litres/cu.ft): 425/15

Description:

Inomak PN229 counter refrigerator

1 door with replaceable magnetic gaskets
4 Drawers with replaceable magnetic gaskets
Standard with one shelf per door
Accommodates 1/1 gastronorm trays
High grade AISI 304 stainless steel interior and exterior
Height adjustable legs
Capacity: 425 ltr / 15 cu ft
Temperature range +1 to +10'c
Dimensions: 870(h)x1790(w)x 700(d)
Weight: 137kg
Fan assisted cooling
Evaps. epoxy coated to avoid corrosion
50mm CFC Free Polyurethane insulation
R134a refrigerant
Auto defrost - off cycle
Auto vaporisation of condensate
Electronic controller incorporates an audible and visual HI/LOW alarm
Auto/Manual defrost indicator
Standby switch
3 years Parts and 3 year Labour Warranty
Free UK mainland delivery

Key Features:

No of Doors: 1 Door / 6 Drawers
Fridge / Freezer: Fridge
Power: 13amps
Ext.Depth (mm): 700
Ext.Height (mm): 870
Ext.Width (mm): 2240
Warranty (Years): 3
Temperature °C: +1 to +10c
Capacity (litres/cu.ft): 578 / 20 cu ft

Description:

Inomak PN2229 counter refrigerator

1 door with replaceable magnetic gaskets
6 Drawers with replaceable magnetic gaskets
Standard with one shelf per door
Accommodates 1/1 gastronorm trays
High grade AISI 304 stainless steel interior and exterior
Height adjustable legs
Capacity: 578 ltr / 20 cu ft
Temperature range +1 to +10'c
Dimensions: 870(h)x2240(w)x 700(d)
Weight: 157kg
Fan assisted cooling
Evaps. epoxy coated to avoid corrosion
50mm CFC Free Polyurethane insulation
R134a refrigerant
Auto defrost - off cycle
Auto vaporisation of condensate
Electronic controller incorporates an audible and visual HI/LOW alarm
Auto/Manual defrost indicator
Standby switch
3 years Parts and 3 year Labour Warranty
Free UK mainland delivery
(model shown is the PN229)

Stainless steel exterior/interior construction.
Slimline style - 600mm depth.
Fan assisted cooling.
Can operate up to 40C ambient.
Auto defrost - off cycle
Electronic controller.
Standard with one shelf per door section.
Shelf size - 325 x 458mm.
Temperature range: 1C to 10C.
Capacity - 205 litres.

870 x 1340 x 600mm (H x W x D)

Stainless steel exterior/interior construction.
Slimline style - 600mm depth.
Fan assisted cooling.
Can operate up to 40C ambient.
Auto defrost - off cycle.
Electronic controller.
Standard with one shelf per door section.
Shelf size - 325 x 458mm.
Temperature range: 1C to 10C.
Capacity - 328 litres.

870 x 1790 x 600mm (H x W x D)

Key Features:

Power: 13 amp Single Phase
Ext.Depth (mm): 700
Ext.Height (mm): 630
Ext.Width (mm): 1780
Warranty (Years): 3
Temperature °C: +1 to +10'c

Description:

Inomak SN337 Snack counter

High grade 304 stainless steel interior and exterior
4 Drawers
1 Door
Stainless steel finish to back of counter
Door accomodates 1/1 gastromorm trays
Doors and drawers with replaceable gaskets
Height adjustable stainless steel legs
High Ambient - operates in 40'c
Castors available as optional extra
180' opening of door for easy cleaning
50mm CFC free Polyurethane insulation
Fan assisted cooling
Epoxy coated evaporator to avoid corrosion
Refrigerant R134a
Auto defrost
Auto vapourisation of condensate
Electromic controller fitted
3 year parts & labour warranty
Free UK mainland delivery

Key Features:

Power: 13 amp Single phase
Ext.Depth (mm): 700
Ext.Height (mm): 630
Ext.Width (mm): 2240
Warranty (Years): 3
Temperature °C: +1 to +10'c

Description:

Inomak SN3337 Snack counter

High grade 304 stainless steel interior and exterior
6 Drawers
1 Door
Stainless steel finish to back of counter
Door accomodates 1/1 gastromorm trays
Doors and drawers with replaceable gaskets
Height adjustable stainless steel legs
High Ambient - operates in 40'c
Castors available as optional extra
180' opening of door for easy cleaning
50mm CFC free Polyurethane insulation
Fan assisted cooling
Epoxy coated evaporator to avoid corrosion
Refrigerant R134a
Auto defrost
Auto vapourisation of condensate
Electromic controller fitted
3 year parts & labour warranty
Free UK mainland delivery

Product Specifications

+1c/+10c
3 Year Parts Warranty.
Accepts 3 x 1/1 Gastronorm pans 150mm.
Auto defrost
Fan assisted
13 amp

Key Features:

Power: 13 amp single phase
Ext.Depth (mm): 340
Ext.Height (mm): 420
Ext.Width (mm): 1790
Warranty (Years): 3
Temperature °C: +3 to +10'c

Description:

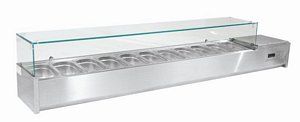

Inomak WV179 prep top

Constructed in 304 stainless steel
Supplied with glass sneeze guard
Capacity: 8 x 1/4 gast
Accepts 1/4 size GN containers max 150mm deep (not supplied)
Electronic controller
Digital temperature read out
Manual defrost
R134a refrigerant

INOMAK MA67 BAIN MARIE
Open type Bain Marie. Table top. Gastronorms optional.
Power consumption 13 amps
Capacity 2 x 1/1 Gastronorms
Dimensions H230mm W720mm D650mm

INOMAK MA610 BAIN MARIE
Open type Bain Marie. Table top. Gastronorms optional.
Power consumption 13 amps
Capacity 3 x 1/1 Gastronorms
Dimensions H230mm W1030mm D650mm

INOMAK MA614 BAIN MARIE
Open type Bain Marie. Table top. Gastronorms optional.
Power consumption 13 amps
Capacity 4 x 1/1 Gastronorms
Dimensions H870mm W1380mm D700mm

INOMAK MD711 BAIN MARIE & BASE
Open type Bain Marie. Comes with base unit. Gastronorms optional.
Power consumption 13 amps
Capacity 3 x 1/1 Gastronorms
Dimensions H870mm W1100mm D700mm

INOMAK MD714 BAIN MARIE & BASE
Open type Bain Marie. Comes with base unit. Gastronorms optional.
Power consumption 13 amps
Capacity 4 x 1/1 Gastronorms
Dimensions H870mm W1400mm D700mm

INOMAK MD718 BAIN MARIE & BASE
Open type Bain Marie. Comes with base unit.Gastronorms optional.
Power consumption 13 amps
Capacity 5 x 1/1 Gastronorms
Dimensions H870mm W1780mm D700mm

INOMAK MH711 BAIN MARIE & BASE
Open type Bain Marie. Comes with heated base unit. Gastronorms optional.
Power consumption 20 amps
Capacity 3 x 1/1 Gastronorms
Dimensions H870mm W1100mm D700mm

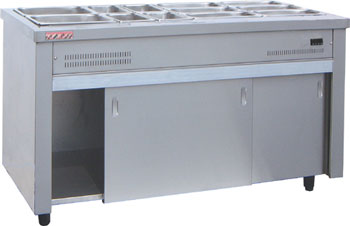

INOMAK MH714 BAIN MARIE & BASE
Open type Bain Marie. Comes with heated base unit. Gastronorms optional.
Power consumption 20 amps
Capacity 4 x 1/1 Gastronorms
Dimensions H870mm W1400mm D700mm

INOMAK MH718 BAIN MARIE & BASE
Open type Bain Marie. Comes with heated base unit. Gastronorms optional.
Power consumption 20 amps
Capacity 5 x 1/1 Gastronorms
Dimensions H870mm W1780mm D700mm

INOMAK MB67 BAIN MARIE & DISPLAY CASE
Open type Bain Marie with glass display. Table top. C/W Quartz Lights. Gastronorms optional.
Power consumption 13 amps
Capacity 2 x 1/1 Gastronorms
Dimensions H650mm W720mm D650mm

INOMAK MB610 BAIN MARIE & DISPLAY CASE
Open type Bain Marie with glass display. Table top. C/W Quartz Lights. Gastronorms optional.
Power consumption 13 amps
Capacity 3 x 1/1 Gastronorms
Dimensions H650mm W1050mm D650mm

INOMAK MB614 BAIN MARIE & DISPLAY CASE
Open type Bain Marie with glass display. Table top. C/W Quartz Lights. Gastronorms optional.
Power consumption 20 amps
Capacity 4 x 1/1 Gastronorms
Dimensions H650mm W1380mm D650mm

INOMAK MF711 BAIN MARIE & DISPLAY CASE & BASE
Open type Bain Marie with glass display on base unit. C/W Quartz Lights. Gastronorms optional.
Power consumption 13 amps
Capacity 3 x 1/1 Gastronorms
Dimensions H1360mm W1100mm D700mm

INOMAK MF714 BAIN MARIE & DISPLAY CASE & BASE
Open type Bain Marie with glass display on base unit. C/W Quartz Lights. Gastronorms optional.
Power consumption 13 amps
Capacity 4 x 1/1 Gastronorms
Dimensions H1360mm W1400mm D700mm

INOMAK MF718 BAIN MARIE & DISPLAY CASE & BASE
Open type Bain Marie with glass display on base unit. C/W Quartz Lights. Gastronorms optional.
Power consumption 20 amps
Capacity 5 x 1/1 Gastronorms
Dimensions H1360mm W1780mm D700mm

INOMAK MI711 BAIN MARIE & DISPLAY CASE & BASE
Open type Bain Marie with glass display on heated base unit. C/W Quartz Lights. Gastronorms optional.
Power consumption 30 amps
Capacity 3 x 1/1 Gastronorms
Dimensions H1360mm W1100mm D700mm

INOMAK MI714 BAIN MARIE & DISPLAY CASE & BASE
Open type Bain Marie with glass display on heated base unit. C/W Quartz Lights. Gastronorms optional.
Power consumption 30 amps
Capacity 4 x 1/1 Gastronorms
Dimensions H1360mm W1400mm D700mm

INOMAK MI718 BAIN MARIE & DISPLAY CASE & BASE
Open type Bain Marie with glass display on heated base unit. C/W Quartz Lights. Gastronorms optional.
Power consumption 30 amps
Capacity 5 x 1/1 Gastronorms
Dimensions H1360mm W1780mm D700mm

Inomak heated cupboards for plate storage
Inomak heated cabinets have stainless steel construction, with sliding door. They are thermostatically controlled and fan assisted.
Temp Range +30°C / +70°C. (Model HCP14 pictured).

INOMAK HCP11 HEATED CABINET
Stainless steel construction, sliding door, thermostatically controlled, fan assisted
Temp Range +30°C / +70°C
Power 13 amp supply
Capacity 91 plated meals or 695 plates.
Dimensions H870mm W1100mm D700mm

INOMAK HCP14 HEATED CABINET
Stainless steel construction, sliding door, thermostatically controlled, fan assisted
Temp Range +30°C / +70°C
Power 13 amp supply
Capacity 111 plated meals or 850 plates.
Dimensions H870mm W1400mm D700mm

INOMAK HCP16 HEATED CABINET
Stainless steel construction, sliding door, thermostatically controlled, fan assisted
Temp Range +30°C / +70°C
Power 13 amp supply
Capacity 133 plated meals or 1000 plates.
Dimensions H870mm W1600mm D700mm

INOMAK HCP19 HEATED CABINET
Stainless steel construction, sliding door, thermostatically controlled, fan assisted
Containers NOT supplied with unit - call us if required.
Temp Range +30°C / +70°C
Power 13 amp supply
Capacity 155 plated meals or 1200 plates.
Dimensions H870mm W1900mm D700mm

INOMAK GANTRIES FOR BAINS MARIE

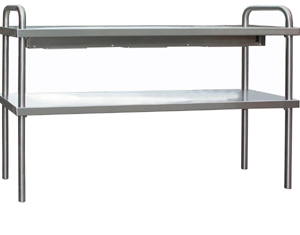

Stainless steel gantries for Inomak Bains Marie. See various configurations below. Model pictured RD 316 gantry with XWH16 Quartz heating unit fitted (see section below for more details).

INOMAK RE311 SINGLE GANTRY
For Bain Marie
Dimensions H400mm W1100mm D300mm

INOMAK RE314 SINGLE GANTRY
For Bain Marie
Dimensions H400mm W1400mm D300mm

INOMAK RE316 SINGLE GANTRY
For Bain Marie
Dimensions H400mm W1600mm D300mm

INOMAK RE318 SINGLE GANTRY
For Bain Marie
Dimensions H400mm W1780mm D300mm

INOMAK RE319 SINGLE GANTRY
For Bain Marie
Dimensions H400mm W1900mm D300mm

INOMAK RD311 DOUBLE GANTRY
For Bain Marie
Dimensions H700mm W1100mm D300mm

INOMAK RD314 DOUBLE GANTRY
For Bain Marie
Dimensions H700mm W1400mm D300mm

INOMAK RD316 DOUBLE GANTRY
For Bain Marie
Dimensions H700mm W1600mm D300mm

INOMAK RD318 DOUBLE GANTRY
For Bain Marie
Dimensions H700mm W1780mm D300mm

INOMAK RD319 DOUBLE GANTRY
For Bain Marie
Dimensions H700mm W1900mm D300mm

The heat & light is provided by 150w quartz lights.

Power Supply: 13 amp.

No Of Lamps & Max Power Consumption:

XWH11 - 3 lamps, 450w.
XWH14 - 4 lamps, 600w.
XWH16 - 5 lamps, 750w.
XWH19 - 6 lamps, 900w.

Dimensions:

XWH11 - W950 x D120 x H50mm.
XWH14 - W1250 x D120 x H50mm.
XWH16 - W1450 x D120 x H50mm.
XWH19 - W1750 x D120 x H50mm.
